1977 Corvette Documentation

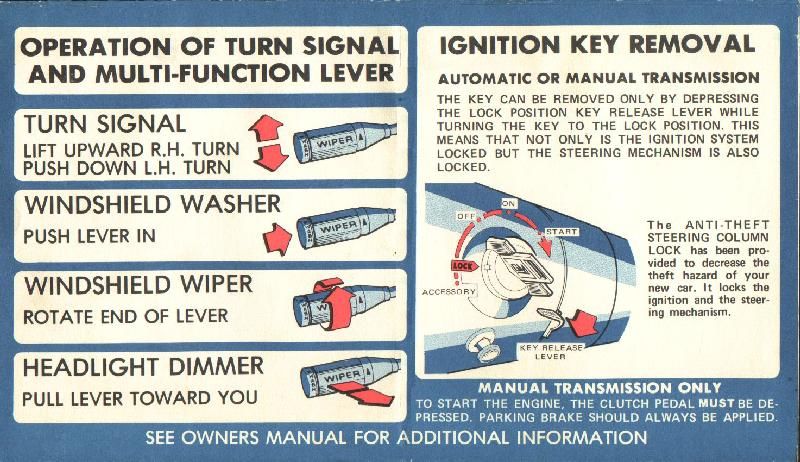

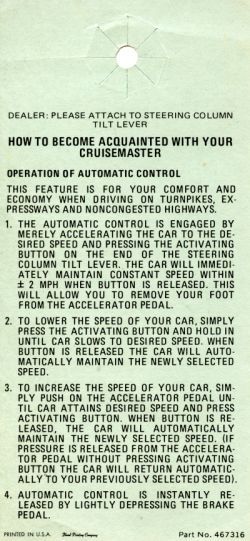

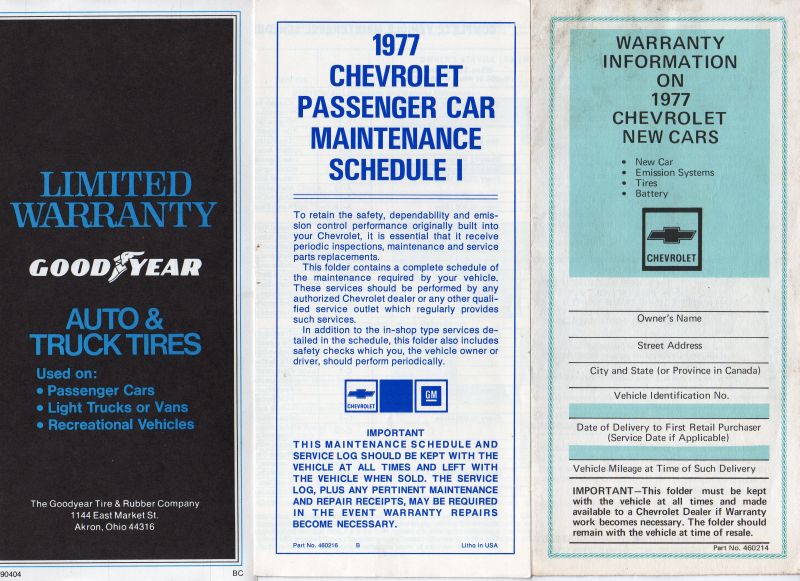

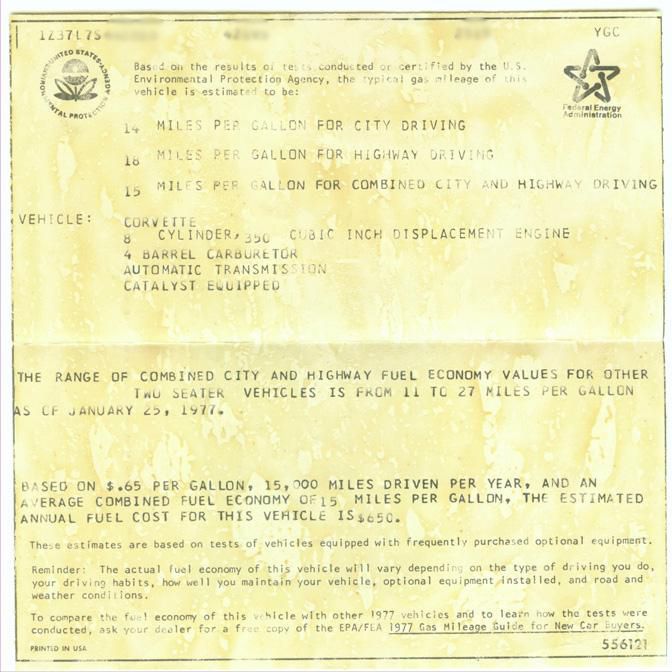

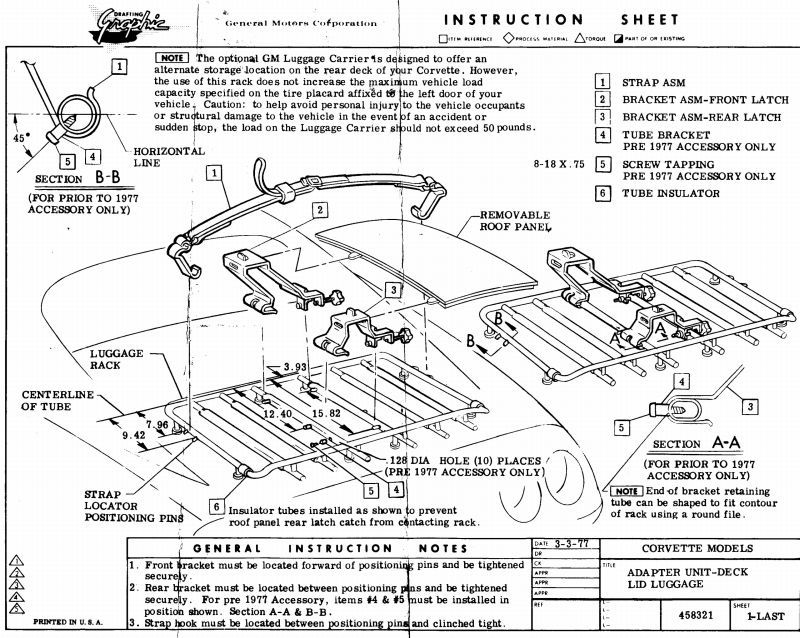

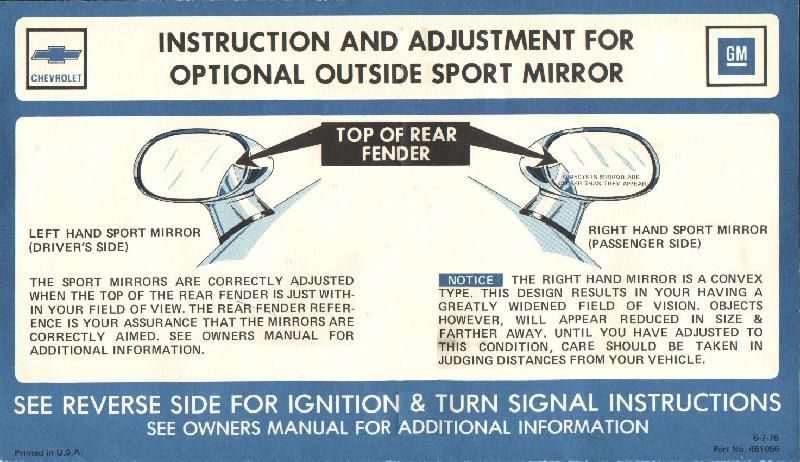

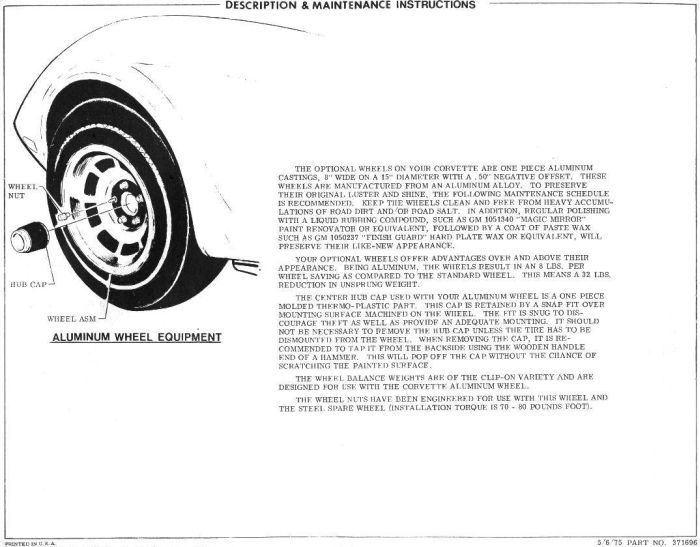

The scans above are one car's papers, kept as a record of what a 1977 Corvette left the dealer with. Readers regularly ask where to get these for their own car, so here is what is actually obtainable and what is not.

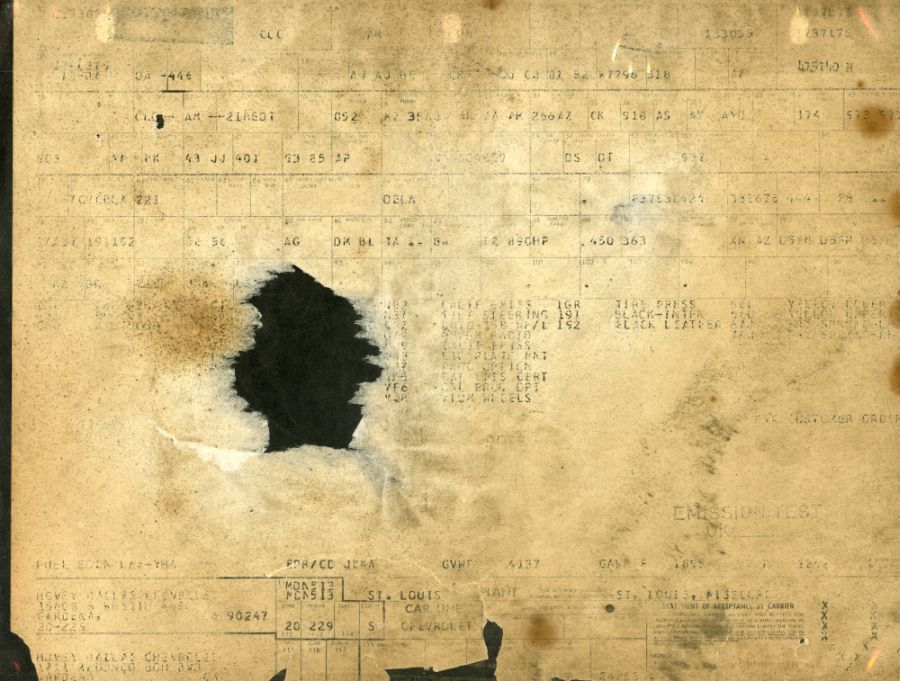

Start with the car itself, before you pay anyone. From 1973 to the end of C3 production the St. Louis plant glued a build manifest, the tank sticker, to the top of the fuel tank before the tank went in. A 1977 falls squarely in those years. It lists the codes the factory built the car to: engine, transmission, rear axle, paint, interior trim and the options. It is the closest thing to a factory build record that still exists for this year, and if it survived it is sitting in your own car. The paper is brittle and it comes out when the tank does, so this is a job to plan rather than to rush. There is no archive of tank stickers anywhere: yours either survived or it did not.

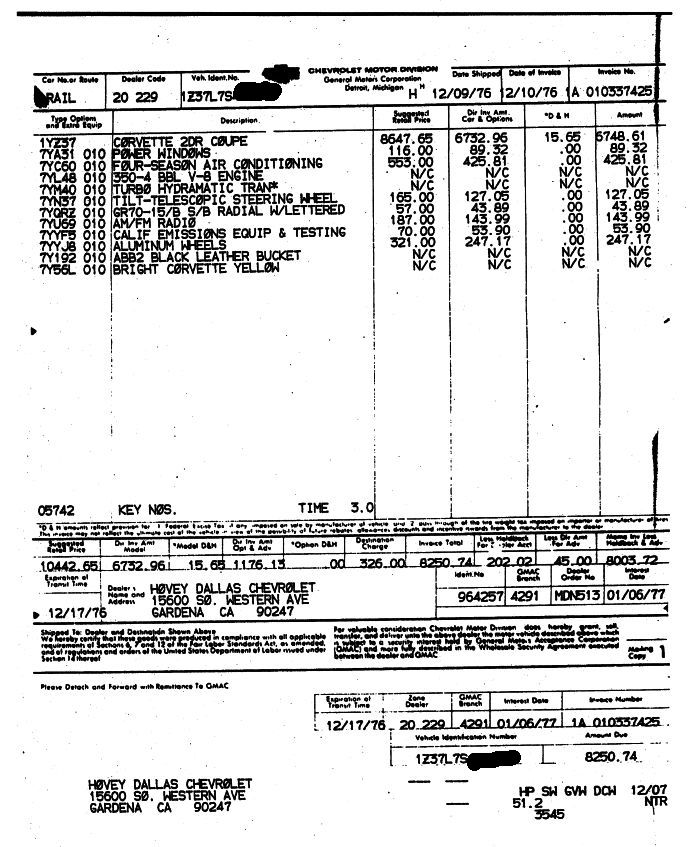

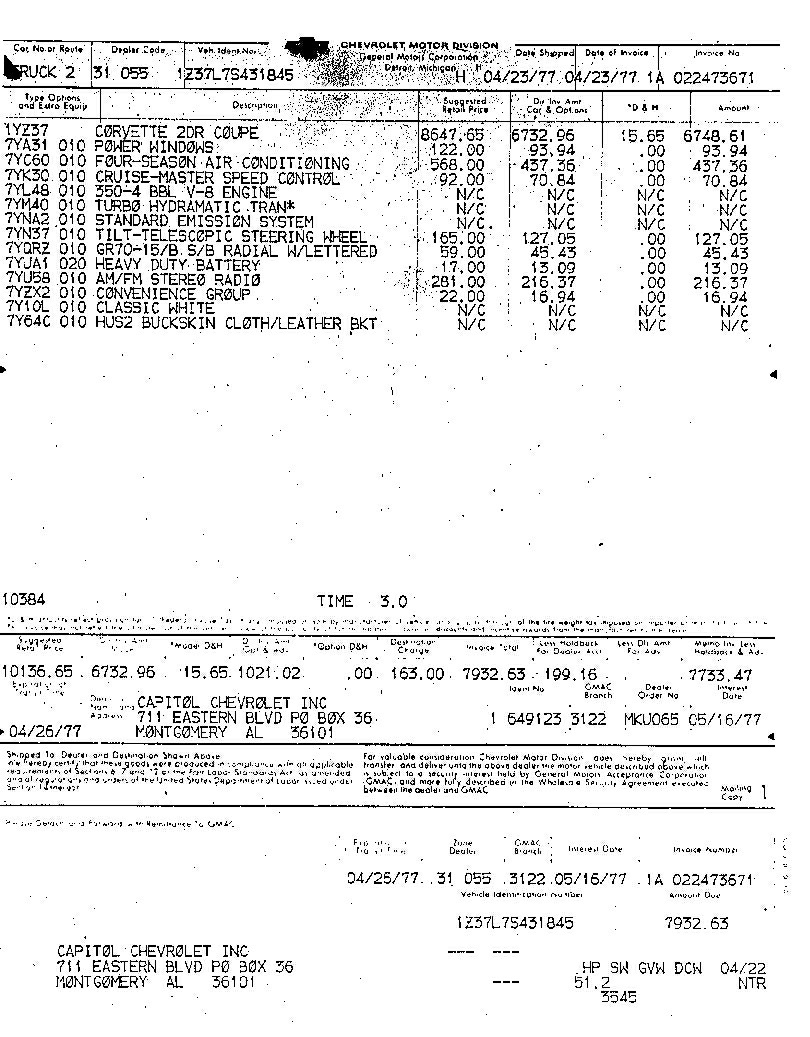

The dealer invoice can still be ordered from GM. GM's archived records are handled for them by Allied Vaughn, and their order form covers Chevrolet vehicle invoices from 1977 onward, so a 1977 Corvette sits at the very first year this route works. The invoice is what GM billed the dealer: the shipping dealer, the options as billed, the prices. At the time of writing it costs about 50 dollars and takes a few weeks. Ask for a "vehicle invoice" rather than a build record.

What GM cannot send you is a build sheet. The assembly plants were only required to keep production paperwork for about six months, and searches inside GM have turned up little more than two years of surviving Corvette production records, none of it reaching 1977. So if a service promises you a factory build record for a 1977, be careful. The tank sticker is the substitute, which is why it is worth looking first.

The NCRS shipping data report gives the dealer, the dealer zone and the production date for a specific VIN, drawn from GM's surviving shipping records. It is not an options list. It costs around 60 dollars and needs an NCRS membership. Coverage is usually described as running from the early sixties into the mid seventies, so a 1977 may sit just outside it. Ask NCRS whether your year is covered before you pay.

The National Corvette Museum's manifest archive starts in 1981, when production moved to Bowling Green. It does not cover St. Louis cars, so it will not help a 1977.

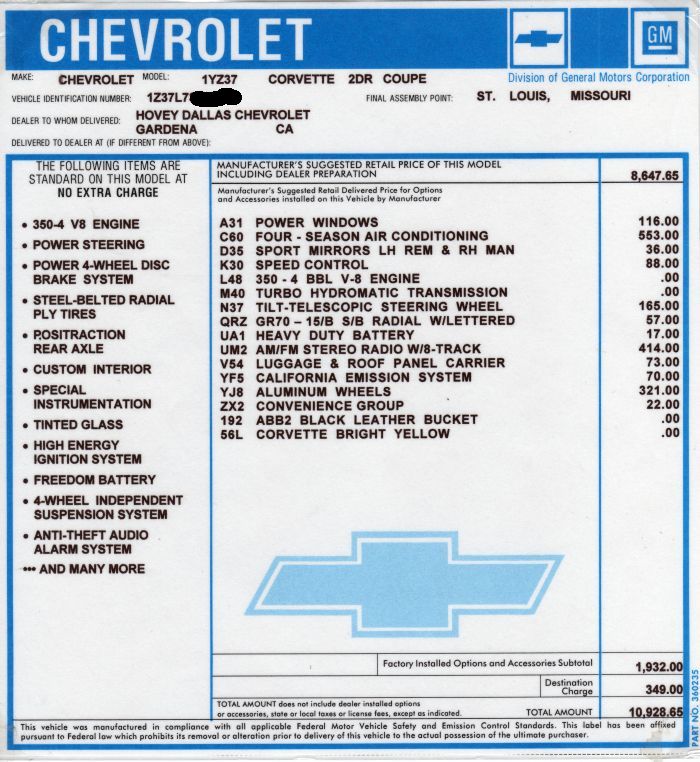

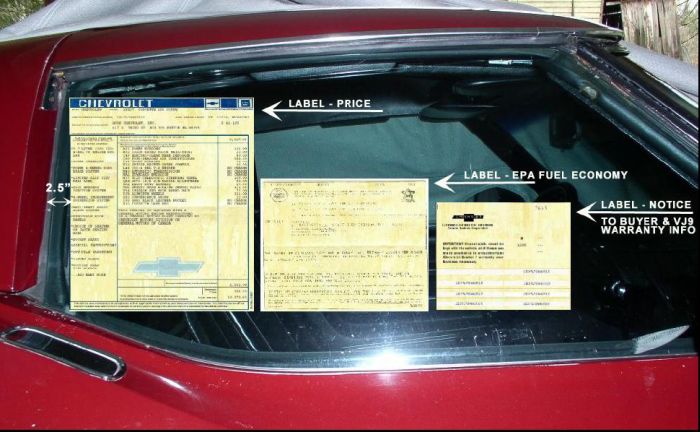

A window sticker can be reproduced, but only reconstructed. No archive of individual 1970s window stickers exists, so nobody can look yours up. What the honest vendors do is rebuild it from real evidence about your car and price the options against period factory lists. That is why the good ones ask you to send in a GM invoice, a tank sticker or your trim tag first, and refuse the order without it. Treat that requirement as a good sign rather than a nuisance.

There was never a Protect-O-Plate for a 1977. That metal plate ran from 1965 to 1972 only. Anyone offering one for a 1977 Corvette is offering something that never existed.

Two things to watch for. First, a decoded VIN dressed up as documentation. Your 1977 has a 13 character VIN, not the 17 character format that came in for 1981, so if a site asks for a 17 digit VIN and returns an instant window sticker for your car, it ran a modern decoder and printed a guess. Anything that needs nothing but a VIN and a card number, and answers in seconds, is a reconstruction and not a record. Second, keep reproductions marked as reproductions. Making one is perfectly normal, and every reputable vendor says plainly on the product that it is a repro. Letting one change hands as an original when the car is sold is another matter entirely, and it is a known problem in this hobby.

In short: look for the tank sticker, order the invoice from GM, and use those to have a window sticker rebuilt if you want one. That is the honest paper trail for a 1977.
